Redshift space slices from variants of the standard open Omega=0.4 model

If you click on any of the following images you should obtain the corresponding full resolution postscript version of the figure.

2df slices 3 degrees deep in declination.

All these slices were constructed from the same realization of the cluster normalized open Omega=0.4 Lambda=0 Gamma=0.25 simulation. The difference slices are for different choices of biasing algorithm, a variation in the selection function and one in which long wavelength power has been added to the simulation using the MAP.

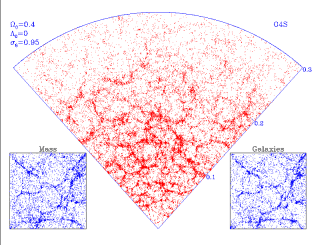

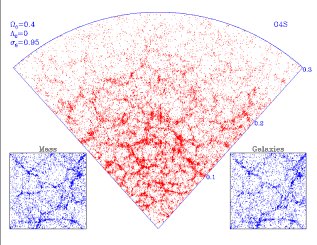

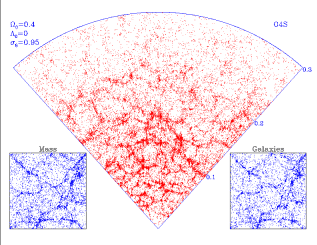

In the main slice galaxies are plotted at their redshift-space positions. The two inset panels show in real-space the mass and galaxy distributions in slices 20 Mpc/h thick and 100 Mpc/h on a side. In these panels both the mass and galaxy distributions are sampled to a number density of n = 0.051 (h/Mpc)^3 .

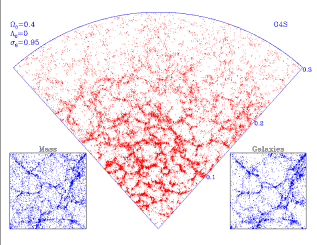

Bias Model 1 Bias Model 2

Bias Model 4

Bias Model 5 Bias Model 6

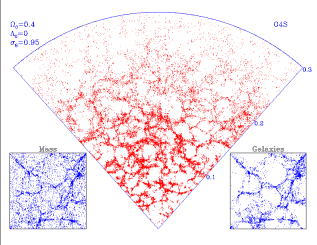

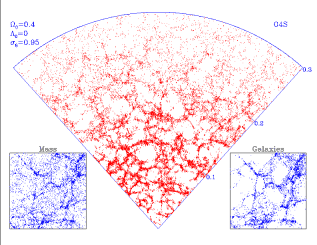

MAP "Evolution"

SDSS slices 6 degrees deep.

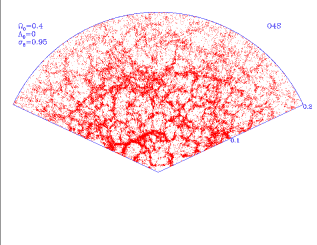

Bias Model 1	Bias Model 2

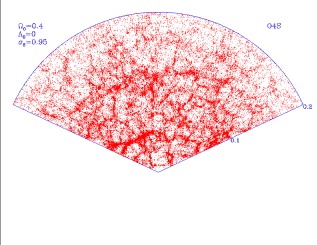

	Bias Model 4

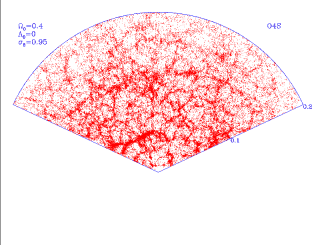

Bias Model 5	Bias Model 6

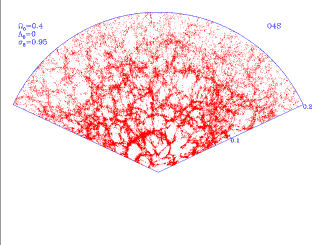

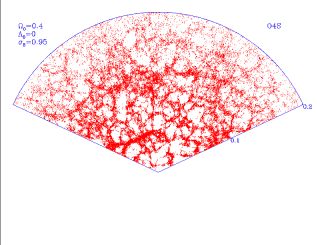

MAP	"Evolution"
