Redshift space slices from the open COBE normalized models
If you click on any of the following images you should
obtain the corresponding full resolution postscript version of
the figure.
2df slices 3 degrees deep in declination.
In the main slice galaxies are plotted at their redshift-space
positions. The two inset panels show in
real-space the mass and galaxy distributions in slices
20 Mpc/h thick and 100 Mpc/h on a side. In these panels both
the mass and galaxy distributions are sampled to a number density
of n = 0.051 (h/Mpc)^3 .

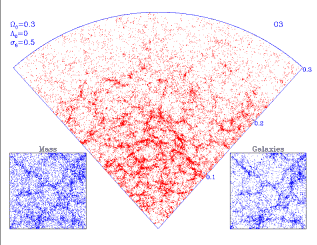

| Omega=0.3 Lambda=0 |

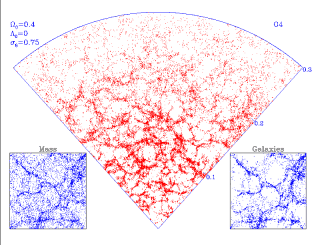

Omega=0.4 Lambda=0 |
|
|

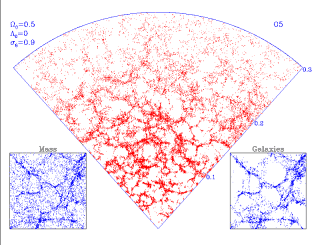

| Omega=0.5 Lambda=0 |
|
SDSS slices 6 degrees deep.
| Omega=0.3 Lambda=0 |
Omega=0.4 Lambda=0 |
|
|

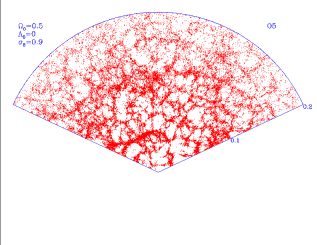

| Omega=0.5 Lambda=0 |
|
